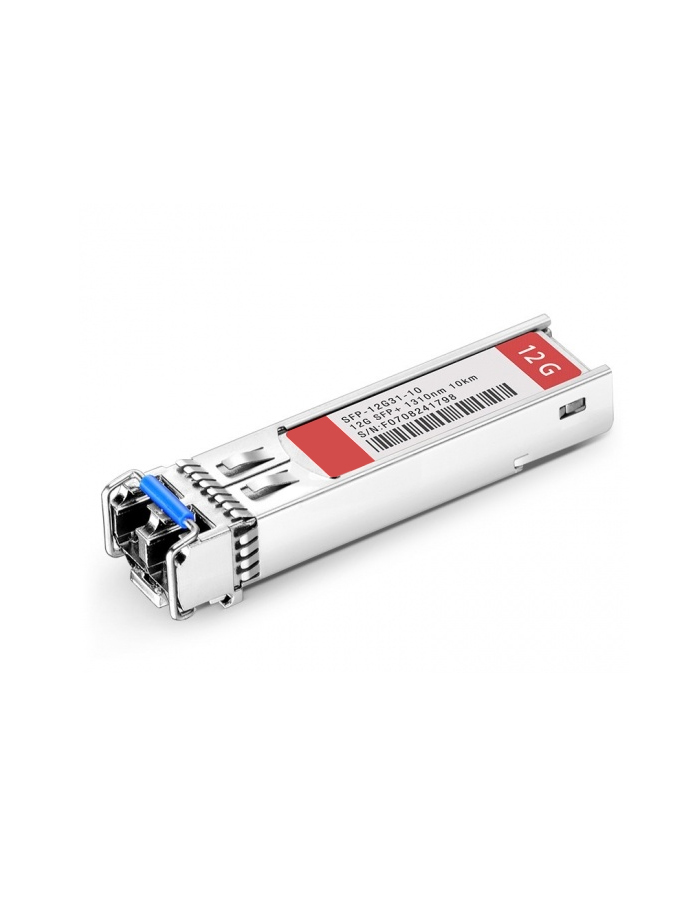

12Gb/s MSA SMF Transmitter

The 12Gb/s single transmitter SFP transceiver module is for single-channel video transmission applications up to 10km over single-mode fiber (SMF). It is compliant with SFP MSA, SFF-8472 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
The transceiver is designed to transmit/receive data rates from 270Mbps to 12Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, SMPTE 424M, SMPTE ST-2081 and SMPTE ST-2082 serial rates. It is suitable for high-definition digital broadcasting applications.

Highlight
  • Max. Power Consumption 0.1W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Supports Video Pathological Patterns for SD/HD/3G/6G/12G-SDI
  • Support for Broadcasting Applications
  • Hot Pluggable SFP MSA Compliant
Certifications
Quote

Specification

Form Factor
Single Transmitter
Max Data Rate
10Gbps
Data Rate
270Mbps to 12Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
LC
Optical Components
DFB Laser
TX Power
-6~0 dBm
DOM Supported
Yes
Video Pathological Patterns Support
Yes
Extinction Ratio
3.5dB
Operation Temperature
0 to 70°C (32 to 158°F)

FAQ

Why choose us?
Quality product(RoHS, CE, CPR, ISO), Competive price, Custom made products, 1-20 years warranty, Fast delivery with bulk order, International shipping; ISO9001 Certified factory.
Please offer us your request details and contact info. We will contact you and pass our quotation sheet to you.
We offer free samples for most of our products. But you should pay the shipping cost.
The delivery of most products is 3-7 working days, some few products are 7-10 working days. Depends on the QTY you needed.
